Boundless

Training data for cameras mounted above the street

Detectors on traffic poles and building facades look down at dense, heavily occluded scenes that driving datasets rarely cover, and labeling that footage by hand is slow and inconsistent. Boundless generates it instead. It is built on the Unreal Engine 5 City Sample, places cameras where a city would mount them, changes lighting, weather and traffic between shots, and computes every label from the simulation state. Detectors trained on Boundless data and evaluated on real imagery from medium-altitude cameras outperform detectors trained on CARLA-generated data by 7.8 mAP.

Try it

Download the simulator, start it in API mode and capture your first labeled 4K frame from Python in a few minutes, or start training right away on the released dataset.

Download the simulator Get the dataset

Windows 10 or 11 with an NVIDIA RTX GPU. The simulator is a 22 GB download.

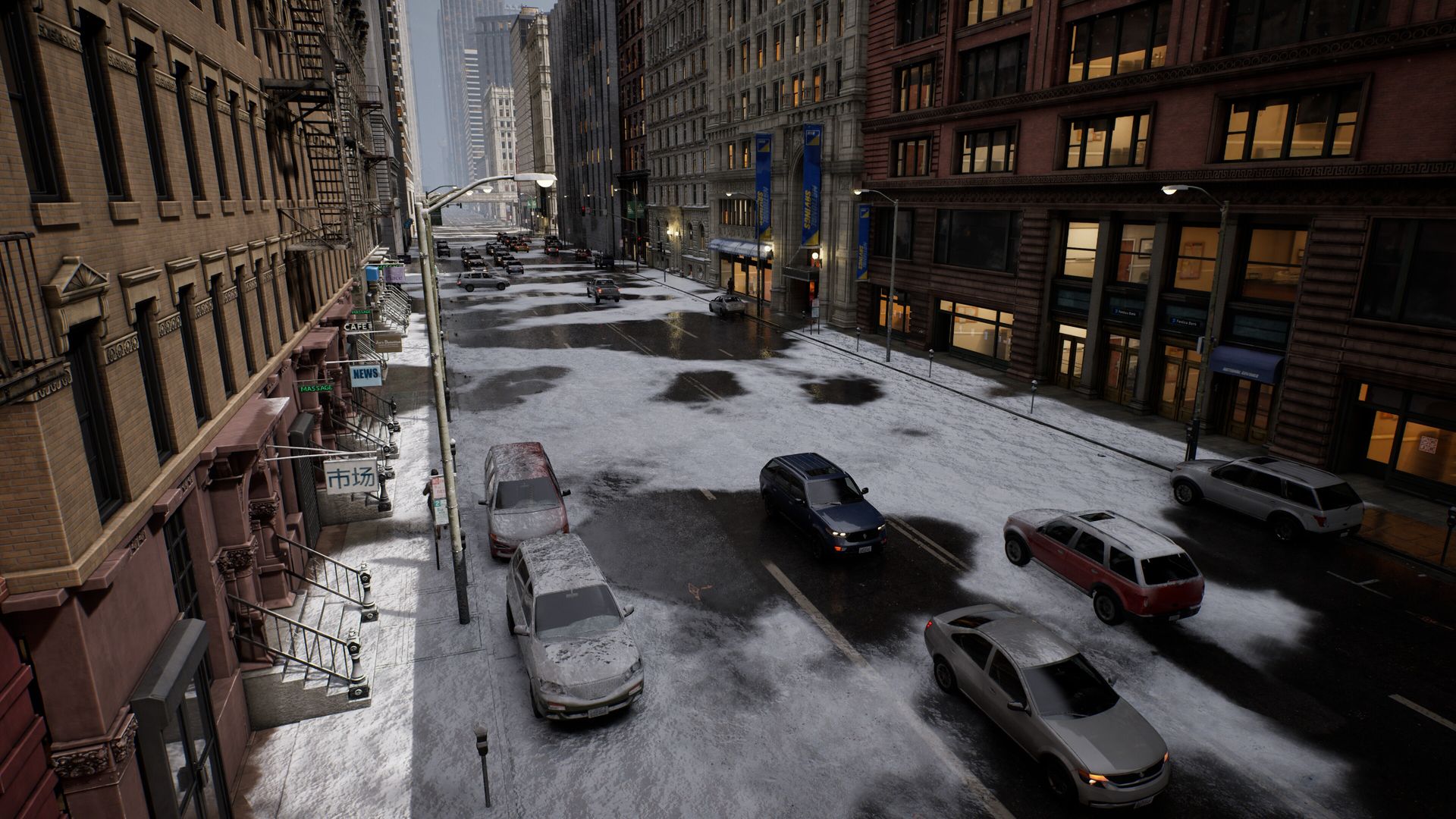

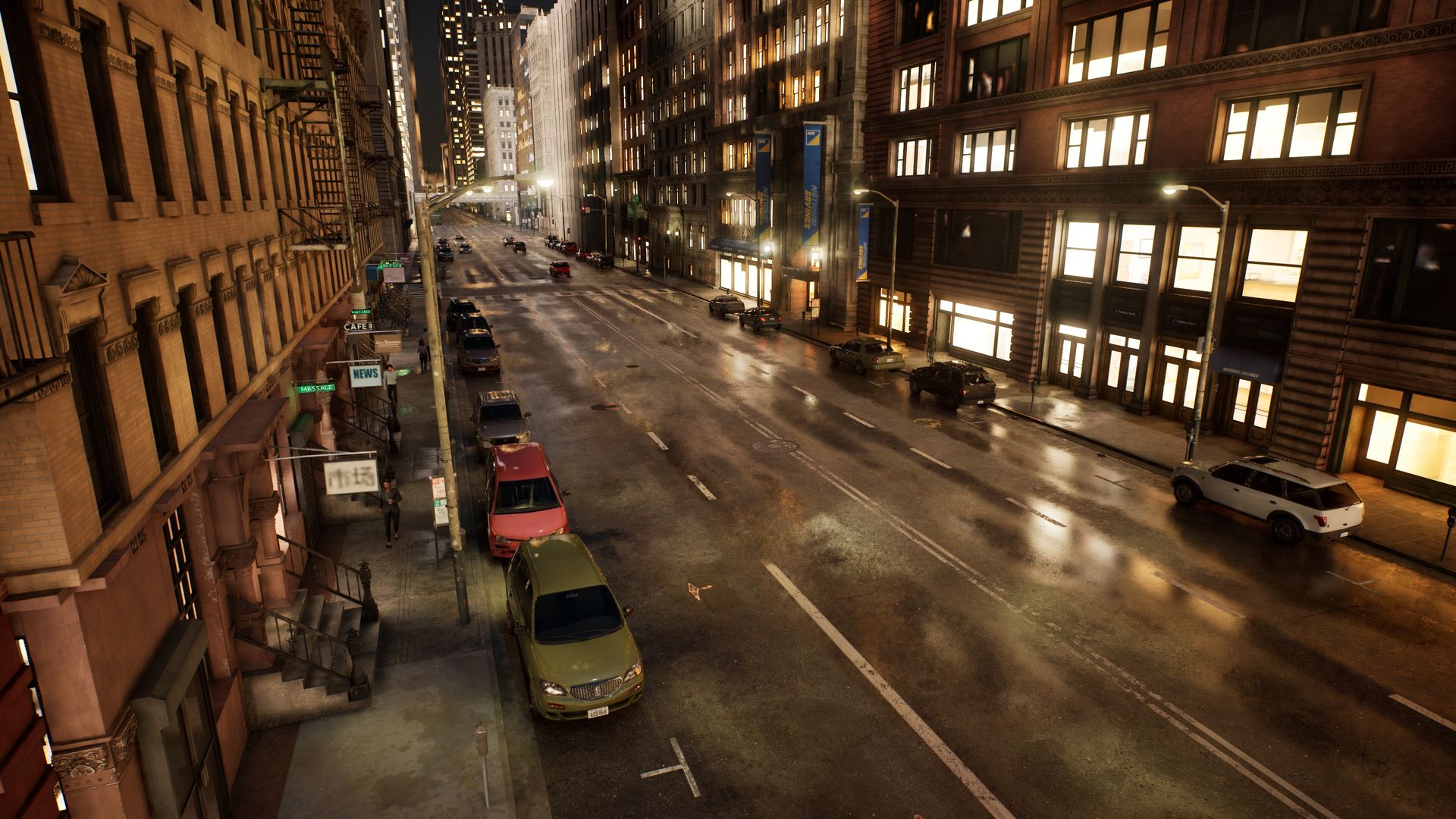

One camera, a new scene every round

Collection runs site by site. At each intersection Boundless places up to sixteen cameras and captures them over several rounds. Every round draws a new sun position, sky, exposure and weather, and re-spawns moving traffic, parked vehicles and pedestrians at new densities, so no viewpoint is captured twice with the same scene. A capture starts only after every agent in view has finished loading.

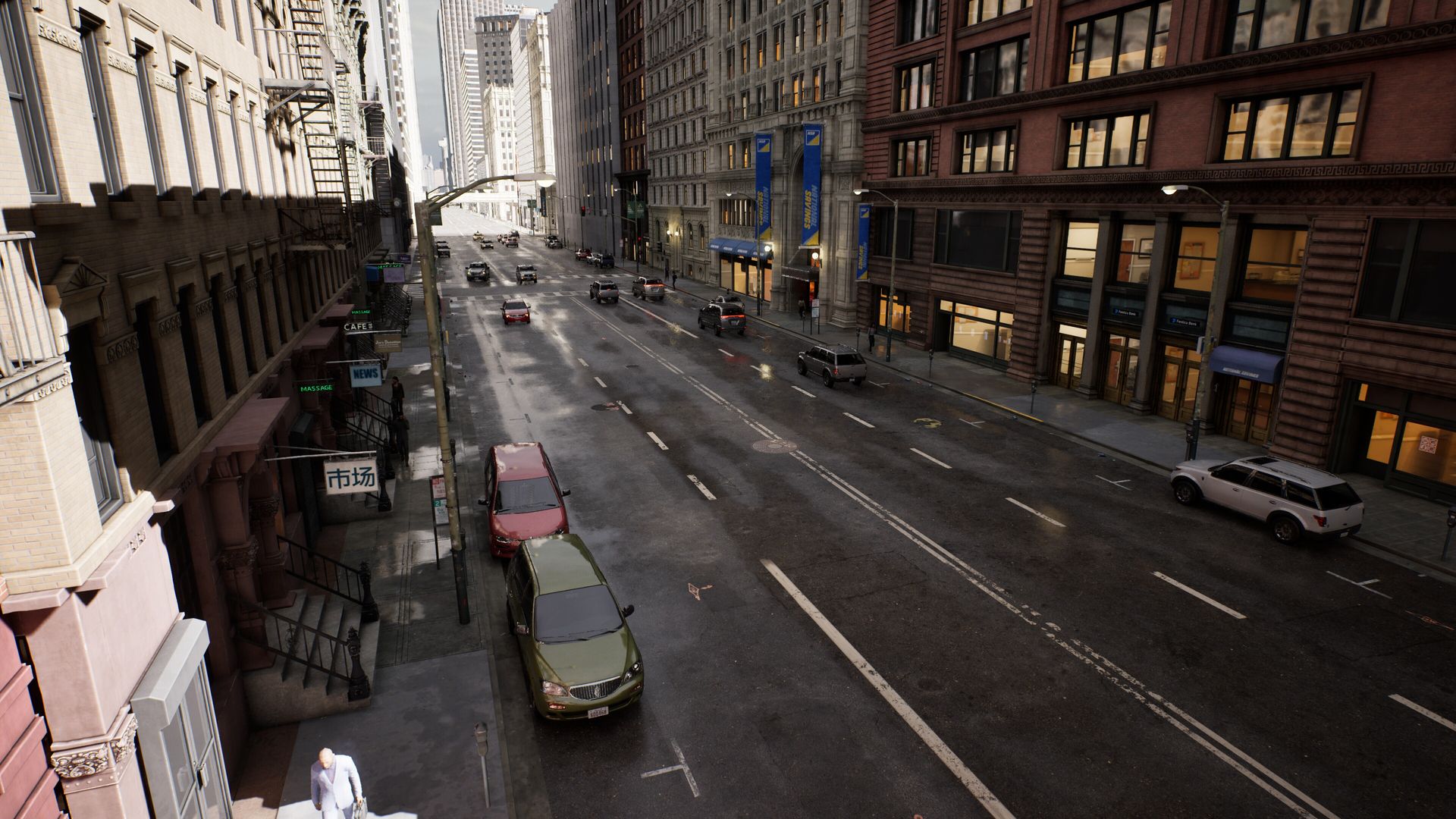

The same camera in direct sun with new traffic

Labels from the simulation, not from annotators

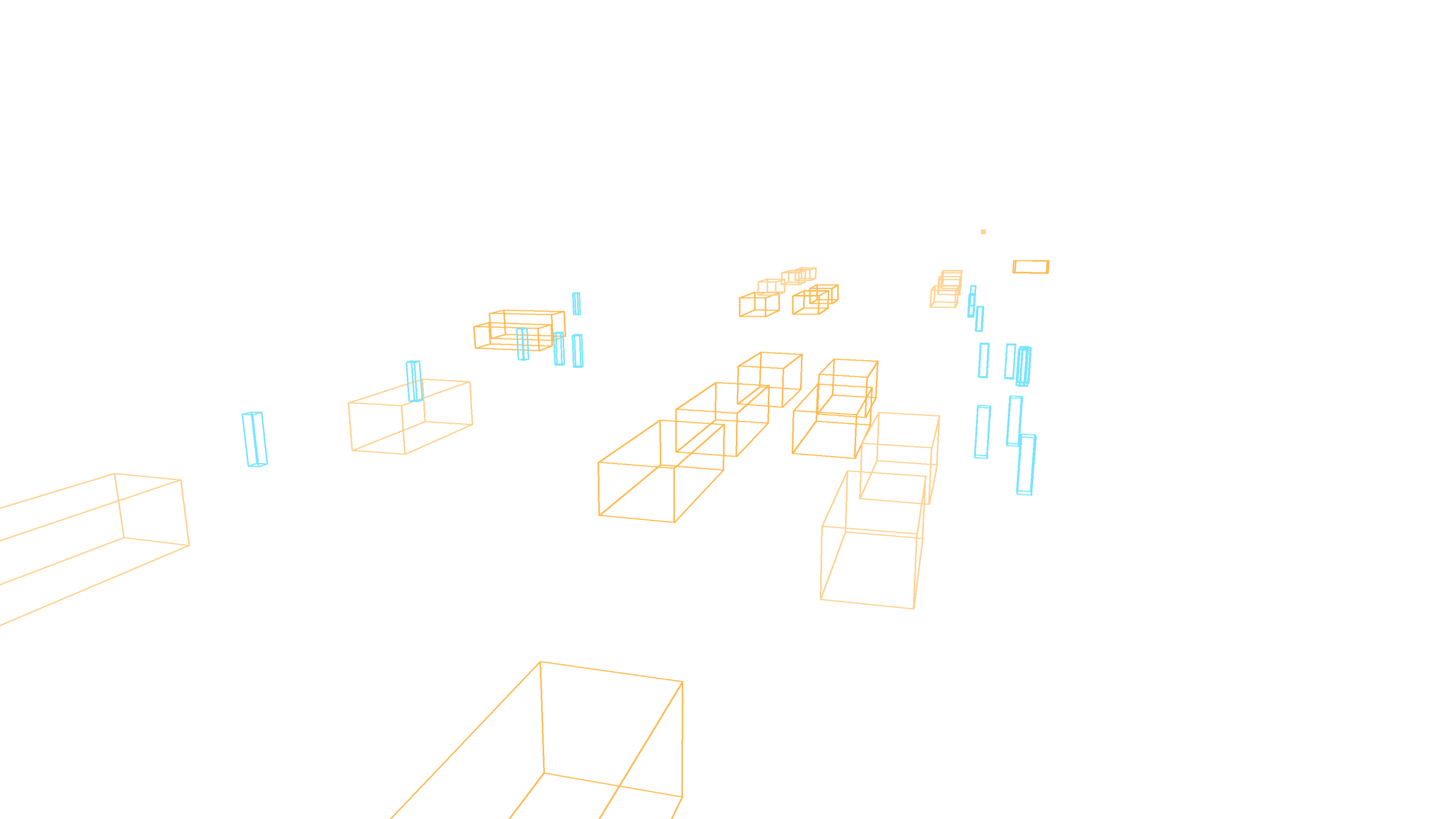

Each object carries an oriented 3D box with its eight corners in world, camera and image coordinates, the projected and visible 2D boxes, truncation, and a visible fraction measured against the depth buffer. Every frame stores the camera intrinsics and world-to-camera extrinsics. Objects are labeled out to 2 km, so traffic at the far end of a street canyon is included whenever a few of its pixels are visible.

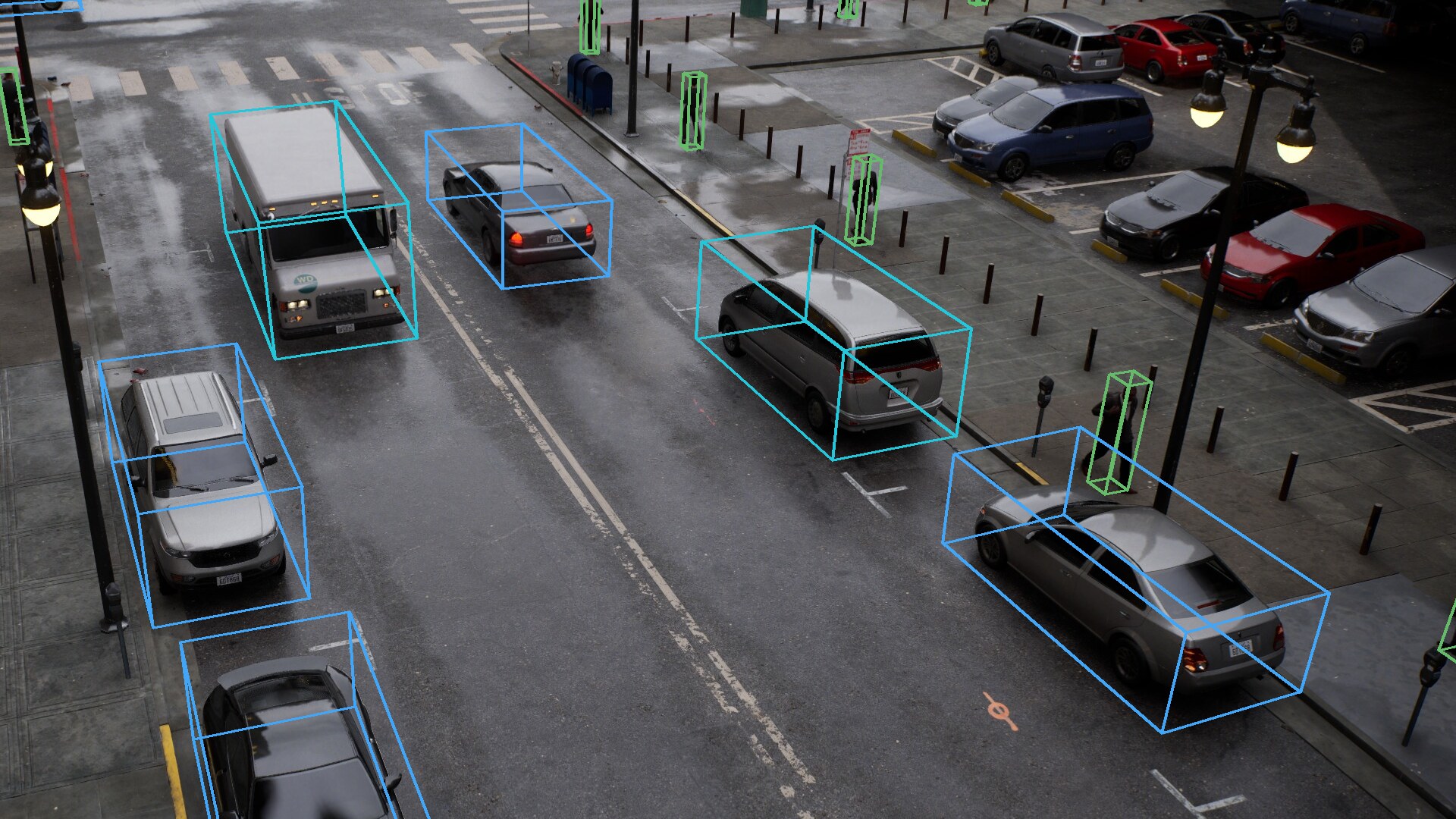

A 1:1 crop of a 4K frame with oriented 3D boxes on vehicles and pedestrians

// labels/001335.json, one object
{
  "label": "car",
  "parked": false,
  "distance_m": 33.26,
  "center": [31334.47, -253787.93, 151.93],
  "extent": [239.44, 105.5, 87.58],
  "rotation": [0.39, 118.5, 0.9],
  "corners_camera": [[-8.07, -5.86, 34.50], ...],
  "corners_image": [[1396.55, 700.24], ...],
  "bbox_2d": [1237.83, 588.42, 1458.64, 827.44],
  "bbox_2d_visible": [1240, 588.42, 1456, 826],
  "truncation": 0.0,
  "visible_fraction": 1.0,
  "occlusion": 0
}

The format, coordinate conventions and corner order are documented in the annotation reference. Exporters for COCO and YOLO ship with the Python package.

Cameras where cities put them

Poses come from the road network: traffic signal and street light poles at intersections and mid-block, second and third floor facade windows, and freeway gantries. Each pose is tested against the scene geometry and rejected when the view is blocked, too close to a surface or mostly sky.

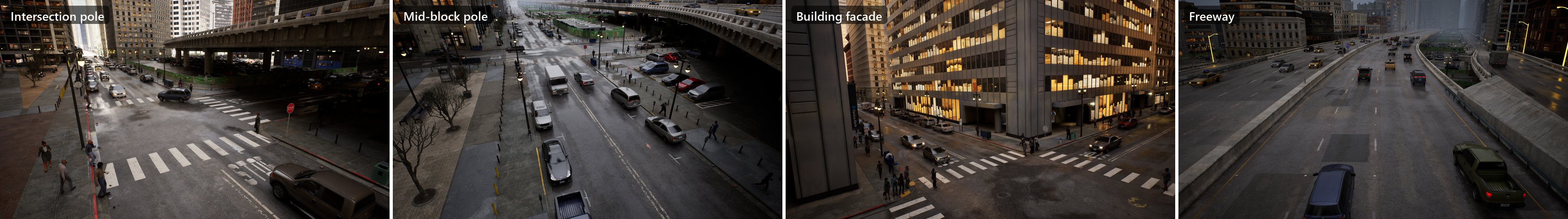

Intersection pole, mid-block pole, facade and freeway cameras — Automatically placed intersection pole, mid-block pole, facade and freeway cameras.

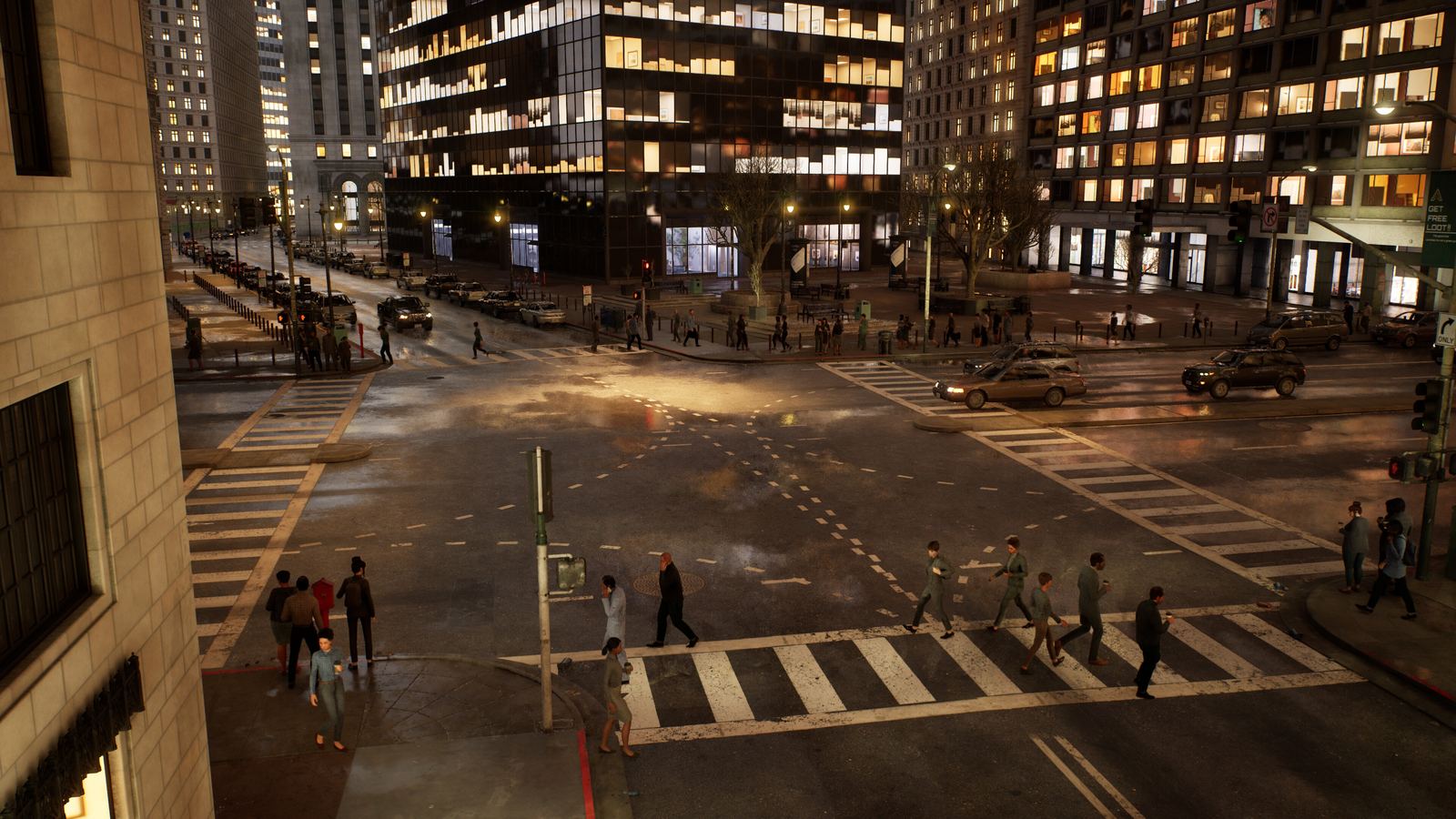

Pedestrians on a crosswalk at night in the rain — Night rain, intersection pole

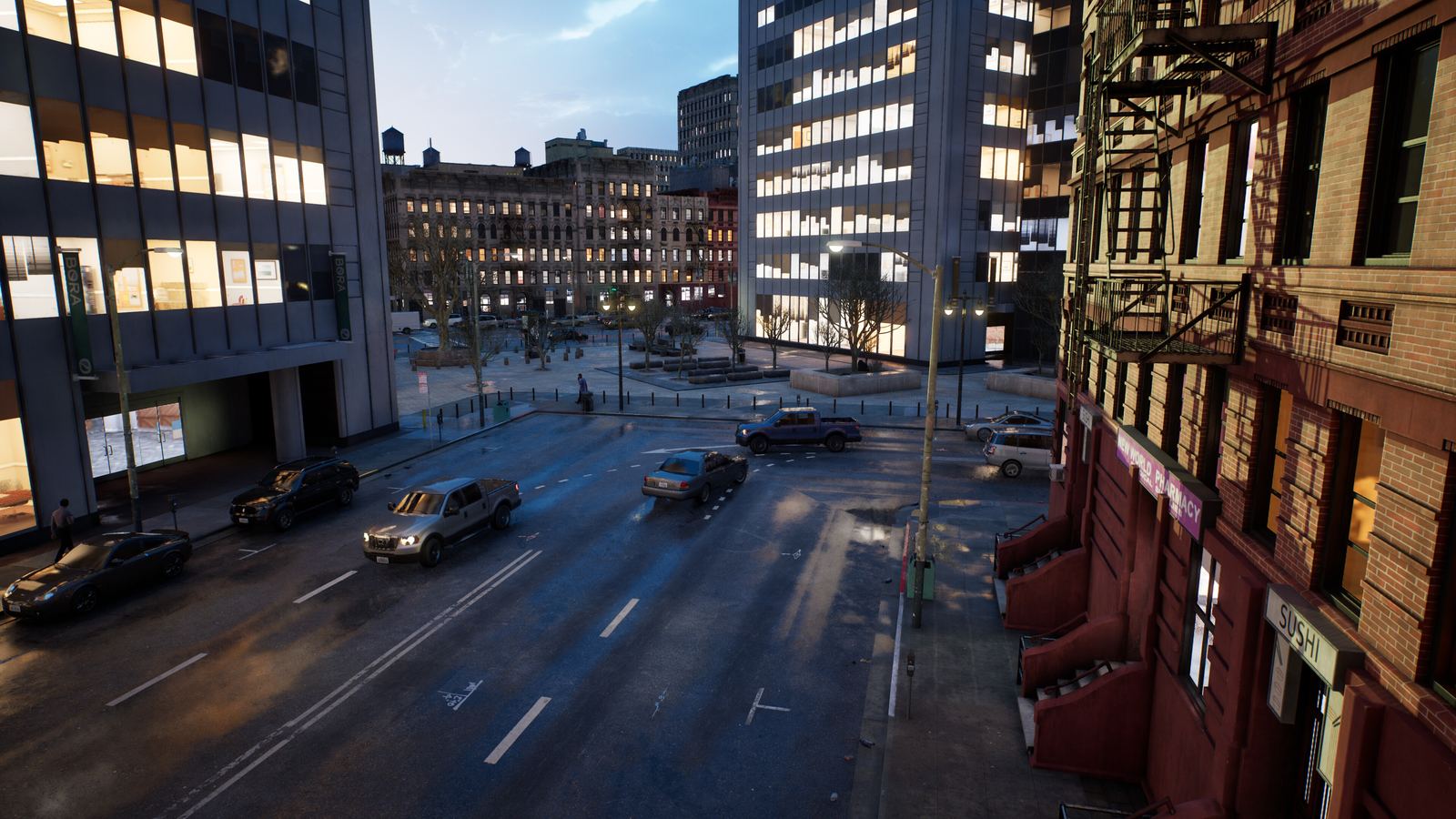

An avenue at dusk with lit office towers — Dusk

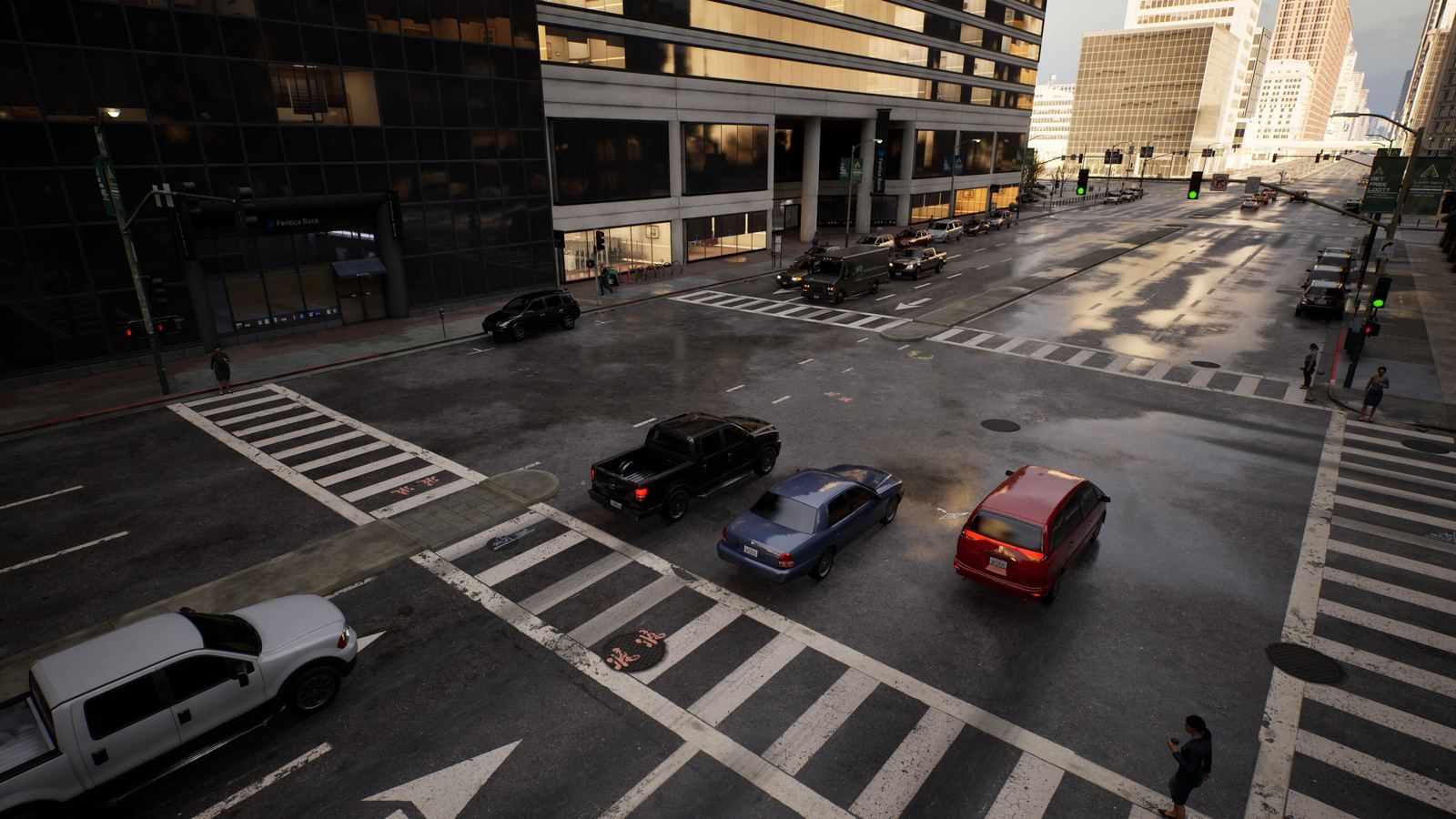

An intersection in low evening sun — Low sun

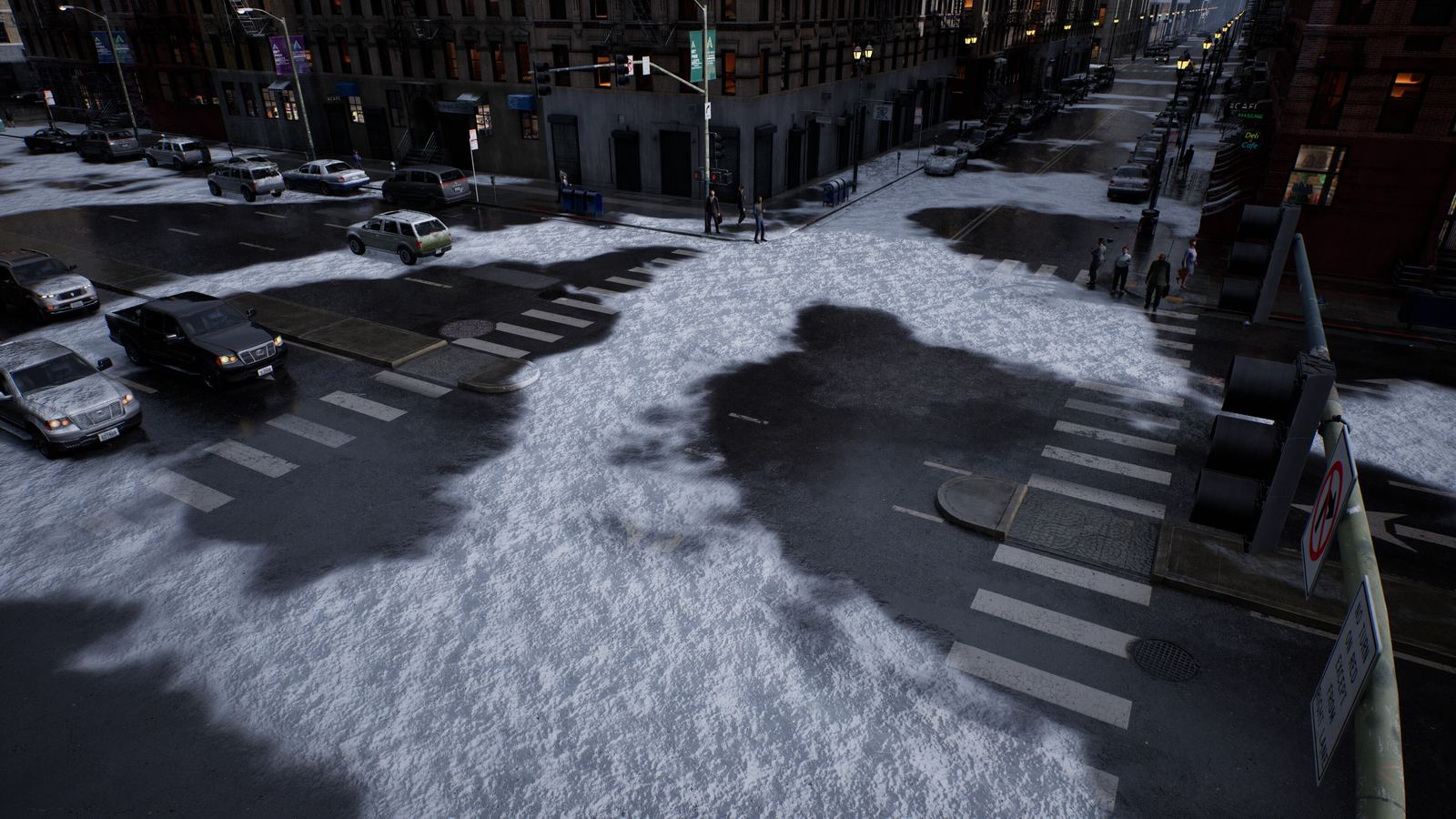

An intersection covered in snow — Snow cover

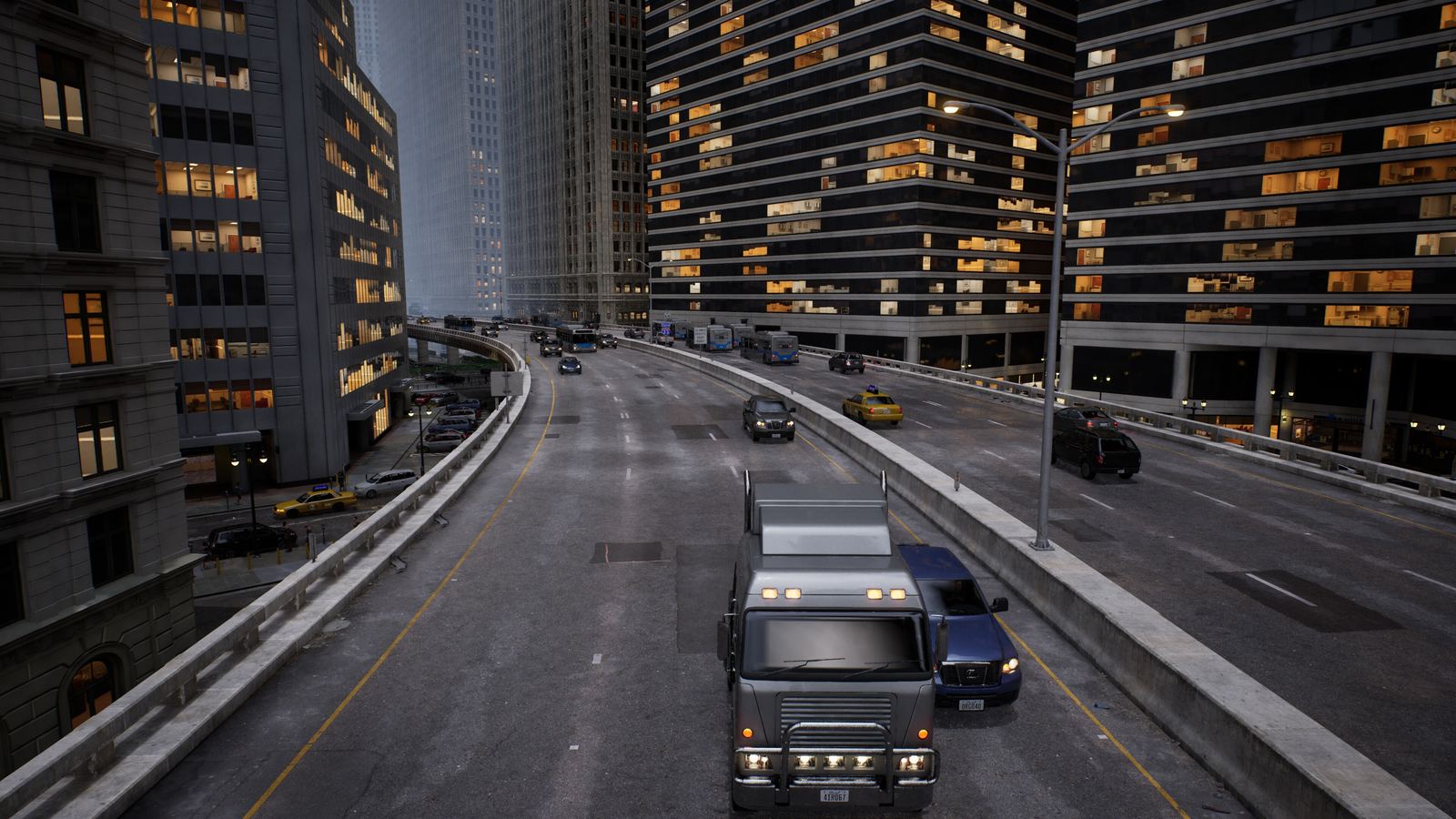

A truck on an elevated freeway in the rain — Rain, freeway gantry

Generate your own

The simulator ships as a Windows application. The Python client drives it over TCP and depends only on the standard library. The script that produced the released dataset runs unattended at about 1,500 frames per hour at 4K on an RTX 4080, resumes after interruptions and restarts the simulator on its own.

Reproduce Boundless Big City 4K

python examples/collect_dataset.py \
    --out C:/data/boundless_bigcity_4k \
    --target 10000 \
    --launch C:/Boundless/Boundless.exe

python tools/finalize_dataset.py \
    C:/data/boundless_bigcity_4k

Drive the simulator from Python

from boundless import Client

with Client("127.0.0.1", 2000) as client:
    client.wait_until_ready()
    client.set_lighting(sun_elevation=12, sun_azimuth=250)
    client.set_weather(rain=0.4)
    client.set_density(traffic=1.2, respawn=True)
    pose = client.sample_camera_poses(n=1, kinds=["intersection"])[0]
    client.set_camera(pose)
    client.wait_until_settled()
    shot = client.capture(output_dir="C:/data/demo")

Datasets

Both datasets are hosted on Hugging Face.

Boundless Big City 4K

Infrastructure camera views of the Big City map at 3840×2160 across sunny, low sun, overcast, rain, snow, dusk, night and night rain conditions, with full 2D and 3D labels.

Frames	10,000
Camera poses	3,332 at 211 sites
Labeled objects	467,619

Open on Hugging Face

Boundless I2X

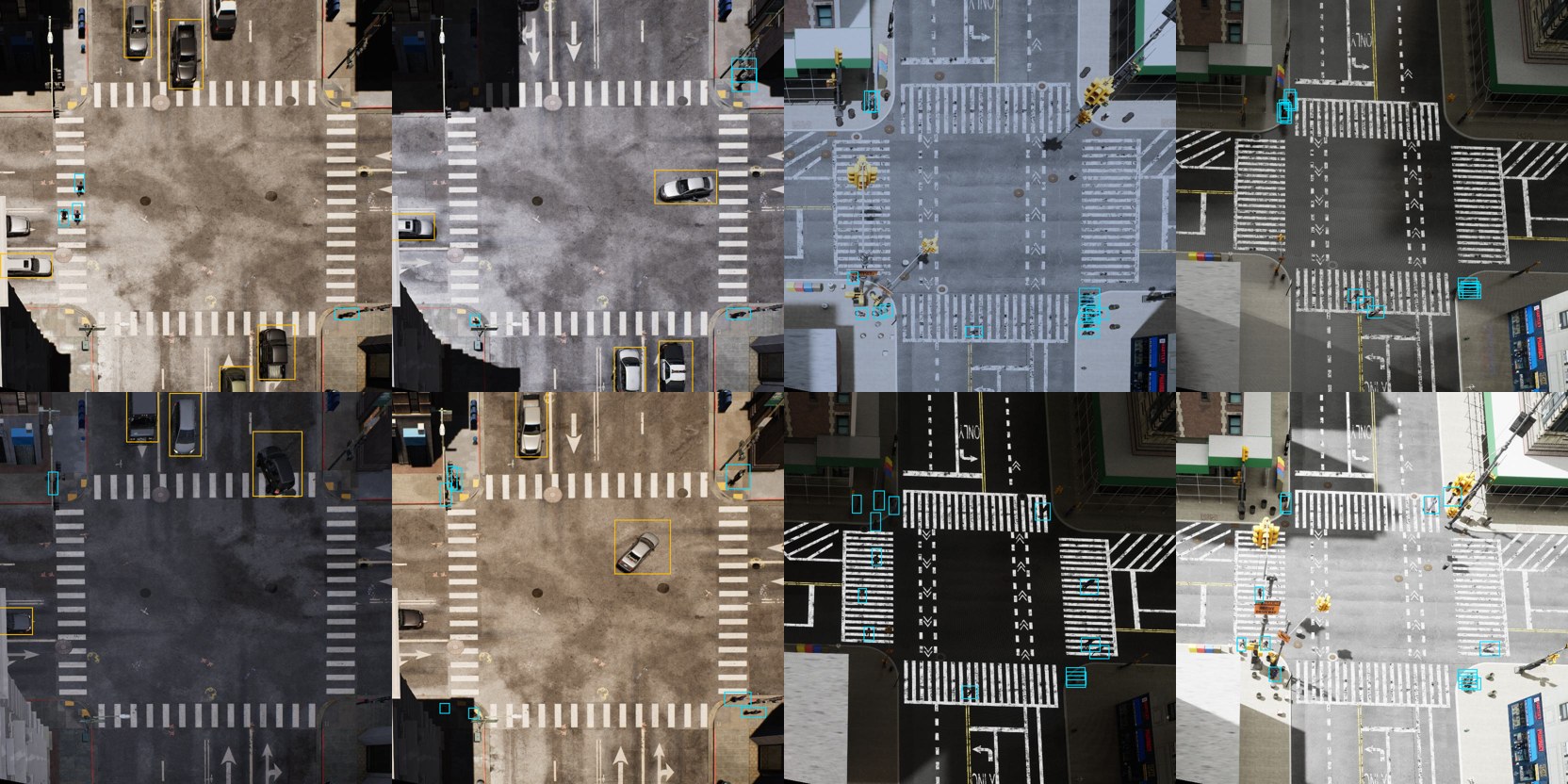

Top-down intersection views at 832×832 in the format of the Constellation dataset, whose real test set serves as the validation split for synthetic-to-real evaluation.

Synthetic training frames	16,698
Real validation frames	3,084
Labeled objects	218,011

Open on Hugging Face

Citation

@article{turkcan2024boundless,
  title   = {Boundless: Generating Photorealistic Synthetic Data for Object Detection in Urban Streetscapes},
  author  = {Turkcan, Mehmet Kerem and Li, Yuyang and Zang, Chengbo and Ghaderi, Javad and Zussman, Gil and Kostic, Zoran},
  journal = {arXiv preprint arXiv:2409.03022},
  year    = {2024}
}
