Rendering in Blender Cycles

The web twin renders in real time. For the highest image quality, a shot can be exported to OpenUSD and path traced in Blender Cycles with the same camera path, sun, buildings, trees, traffic and pedestrians. The export happens in three steps:

1. Harvest. A script opens the client in a headless browser, plays the shot and saves the geometry, materials, textures, lights, the camera of every frame and every moving vehicle and pedestrian along the path.
2. USD. A Python script turns the harvest into USD layers that Blender, or any USD renderer, reads.
3. Render. Blender imports the USD, sets up the sky, lights and materials and renders frames with Cycles.

This guide takes one shot through all three steps, then shows the full take, the batch that renders many shots and checks them, how to open the scene in Blender by hand, typical settings and times, and common problems. The commands are written for a Linux shell; on Windows, run them in Git Bash. The same USD can be rendered with Unreal Engine 5 (Rendering in Unreal Engine 5); One city, three renderers describes how the renderers share the export.

What you need

Item	Requirement
Source checkout	the client installed with its tiles, models and textures: option B of the quick start, including Playwright's Chromium (npx playwright install chromium)
Blender	4.5 LTS (tested with 4.5.14)
Python	3.8 or later and uv, which fetches the USD library for the writer
GPU	an NVIDIA RTX GPU for OptiX; a 2560 × 1440 frame needed 12 to 17 GB of GPU memory and up to 31 GB of RAM. Other GPUs and CPUs work with --cpu, much more slowly
Disk	about 6 GB per shot for the harvest and the USD
Blender assets	the film-detail street trees and the window rooms from the dataset (below)

Install Blender 4.5 LTS

Linux. Download the official archive and unpack it anywhere; no installation or administrator rights are needed:

wget https://download.blender.org/release/Blender4.5/blender-4.5.14-linux-x64.tar.xz
tar xf blender-4.5.14-linux-x64.tar.xz
export BLENDER=$PWD/blender-4.5.14-linux-x64/blender
"$BLENDER" --version

Windows. Install Blender 4.5 LTS from https://www.blender.org/download/lts/4-5/, then in Git Bash:

export BLENDER="/c/Program Files/Blender Foundation/Blender 4.5/blender.exe"
"$BLENDER" --version

The first line of the answer should read Blender 4.5.14 LTS or another 4.5 release. Blender ships its own Python with numpy and the USD library, so the render scripts need nothing else.

Install the tools for the USD step

The USD writer runs in a normal Python with usd-core, numpy, pillow and scipy. With uv no environment needs to be set up: uv run --with ... fetches the packages once and caches them.

pip install uv
uv run --no-project --with usd-core --with numpy --with pillow --with scipy python -c "import pxr; print('ok')"

Download the Blender assets

The street trees of the offline render and the rooms seen through windows are in the dataset's Blender/ folder. Blender/bxtrees2 is the tree set the writer uses by default: 51 trees of the 12 species forms the client plants (London plane, honeylocust, pin oak, zelkova, Callery pear, littleleaf linden, maple, sophora, cherry, purple-leaf plum, small ornamentals and ginkgo) in up to three sizes (young, mature, large) with up to two seeded variants each, with branches to the twigs, leaves cut from CC0 scans and 62K to 1.37M triangles a tree. With the window rooms the download is 220 files, about 2.2 GB:

hf download mehmetkeremturkcan/valdrada --repo-type dataset --revision v0.3.1 \
    --include "Blender/bxtrees2/*" --include "Blender/bxwin/*" --local-dir .cache/hf
export BXTREES_ASSETS=$PWD/.cache/hf/Blender/bxtrees2
export BXTREES2_TEX=$BXTREES_ASSETS/tex
export WINROOMS=$PWD/.cache/hf/Blender/bxwin/rooms_atlas.png

Keep these variables set in every shell you use below. The first tree set, Blender/bxtrees (20 trees with leaf cards), is still in the dataset: a USD written with BXTREES_ASSETS pointing to it renders with that set and needs BXTREES_TEX set to its tex folder. Pedestrians are optional: they need the basisu command line tool (version 1.60, from the Basis Universal releases); set BASISU to its path and BX_PEDS_TEXCACHE to an empty folder, or leave pedestrians out with --nopeds in all three steps.

Choose a shot

A shot is a camera path: an entry in tools/ad/shots.json with a time of day, a duration, a field of view and two or more key points (longitude, latitude and height of the lens and of the point it looks at). node tools/ad/shots.mjs prints the list. This guide uses t7ArchSoffit, a 3.6 s golden hour shot (108 frames at 30 fps) under the Riverside Drive Viaduct where it crosses 125th Street at Twelfth Avenue; it is the lightest of the published shots.

To render a place of your own, add an entry to shots.json modelled on an existing one. Each key has "p": [lon, lat, height above the ground] for the lens and "look": [lon, lat, height] for the target; the path runs through the keys as a smooth curve.

Capture the shot

The harvest starts the client on a local port, plays the shot the way the film recorder does, and saves everything within 350 m of the camera path, with a coarse version of the city out to 4 km. It renders, so it needs the GPU.

mkdir -p ~/bx
node client/tools/ar34/export/harvest.mjs --shots t7ArchSoffit --frames 54 --out ~/bx/h

--frames names the key frames that also get a complete snapshot of the moving vehicles; the camera and the moving vehicles are saved for every frame regardless. On a machine with several GPUs, GPU_LANE=n picks GPU (n − 1) (see tools/gpulock.mjs).

What you should see: the log reports the page booting, the static world along the path (for this shot 1,840 meshes and 126 pools of instanced objects with 121K instances), the window facades, the pedestrians of every frame, and ends with done in 1032.5s; 3645 blobs. The run took 17 minutes and left 2.5 GB in ~/bx/h.

Write the USD

uv run --no-project --with usd-core --with numpy --with pillow --with scipy \
    python client/tools/ar34/export/usd_write.py --in ~/bx/h --out ~/bx/u --coplanar warn

The writer converts materials to UsdPreviewSurface, stores every mesh once and instances it, and writes the take's root layer ~/bx/u/t7ArchSoffit.usda with the camera, the moving layer, the static city, the trees, the materials and the lights as sublayers, plus textures/. The trees are the prototypes of BXTREES_ASSETS on the client's tree matrices: each instance takes its size from its pool and its own scale and its variant from a hash, at full detail within 400 m of the lens path and with a lighter level of detail to 800 m. The trees' geometry layer is about 1.2 GB a shot. usd_trees.py --retake <usd dir>/<shot>.usda --out <dir> swaps the trees of a USD already written in about 10 s.

The client's road graph joins some elevated roads to the street by ramps that its traffic follows but its road builder does not deck, such as the Henry Hudson Parkway's ramps by West 125th Street, so the harvest has vehicles driving through the air there. The writer's ramp hook (usd_ramps.py) lays a deck under every such path, asphalt on top, concrete on its sides and underside and 1 m parapets along its edges, so that no vehicle is drawn without a surface under it; the client itself still draws these ramps without a deck. Its coplanar pass separates surfaces that lie in one plane (paint on asphalt, signs on walls), which a path tracer would otherwise show as flickering stripes. Pairs it cannot resolve are listed in bx_fix.json; with --coplanar warn they are reported, without it the writer exits with code 4 when any remain in view. "unresolved reference" warnings in the log are normal. For this shot the writer needed 4 minutes without the coplanar pass (--coplanar off, for a quick look only) and wrote 2.5 GB; the pass adds 6 to 14 minutes per shot (9.3 minutes in all for this shot in the published batch).

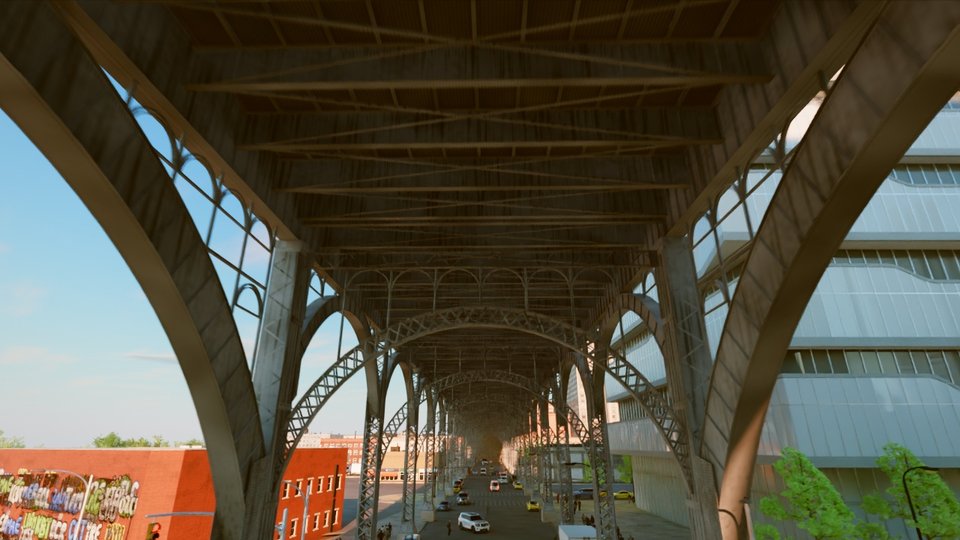

Render one frame

CUDA_VISIBLE_DEVICES=0 "$BLENDER" -b --factory-startup --python client/tools/ar34/export/blender_take.py -- \
    --usd ~/bx/u/t7ArchSoffit.usda --harvest ~/bx/h --outdir ~/bx/frames --frames 54 \
    --res 1280x720 --samples 24 --leaves 0.45 --leafgain 1.8 --winrooms "$WINROOMS"

-b runs Blender without its window and --factory-startup ignores your Blender preferences. Everything after -- goes to the script. CUDA_VISIBLE_DEVICES picks the GPU (the number nvidia-smi shows when CUDA_DEVICE_ORDER=PCI_BUS_ID is also set); without it Cycles uses every GPU it finds. On Windows set the variable before the command or prefix it in Git Bash as shown.

The script imports the USD, builds the moving vehicles as animated objects, adds the lights, the window rooms, the tree crowns and the film look (haze, bloom, grading), and renders with the OptiX denoiser. The light is physical by default (--light phys): the sun and the street and vehicle lamps at the client's own levels, the visible sky dome as the only sky light, no fill lights, untrimmed albedos and a fixed exposure per time of day from client/tools/ar34/export/phys_light.json, the table the Unreal renderer reads too, so the two renderers light a take alike. --light web selects the earlier rig, calibrated against the web takes. It writes ~/bx/frames/frame_00054.jpg, the run's settings and times in take_54-54.json, and the frame's depth in _depth/. On an RTX 6000 Ada shared with another render, the setup took 127 s (import 23 s) and the frame 28 s; the whole command 158 s.

Render the full take

CUDA_VISIBLE_DEVICES=0 "$BLENDER" -b --factory-startup --python client/tools/ar34/export/blender_take.py -- \
    --usd ~/bx/u/t7ArchSoffit.usda --harvest ~/bx/h --outdir ~/bx/frames \
    --res 2560x1440 --samples 24 --leaves 0.45 --leafgain 1.8 --winrooms "$WINROOMS"
ffmpeg -framerate 30 -i ~/bx/frames/frame_%05d.jpg -c:v libx264 -crf 16 -pix_fmt yuv420p ~/bx/t7ArchSoffit.mp4

Without --frames the whole take is rendered (frames 0 to 107). Blender keeps the scene between frames and updates only what moves, so after the first frame each frame costs the scene update plus sampling. Frames that exist are kept; --overwrite renders them again. The motion blur matches the web takes (half a frame, ending at the frame).

Render many shots with checks

client/tools/ar34/export/bx_render_all.mjs runs harvest, USD and take for a list of shots, spreads the takes over the GPUs, resumes after an interruption, and checks every take. Paths to Blender and to the work folders are options or environment variables:

BLENDER="$BLENDER" node client/tools/ar34/export/bx_render_all.mjs --shots t7ArchSoffit --gpus 0 \
    --frames 0-23 --res 1280x720 --samples 16 --work ~/bx/batch --clips ~/bx/takes --nocut --uflags "--coplanar warn"

--dry prints the plan without running it. Each shot's stage, times and check results go to <work>/<shot>/status.json and a summary to <work>/summary.json.

Two checks run before the take, so that a shot with a known fault stops early. Right after the USD is written, the geometry check reads bx_fix.json and stops the shot (stage usd-check) when more than 100 coplanar pairs remain in view (--coplanartol), when the USD was written without the coplanar pass, or when a harvest with walkers has no walker file. The batch writes every USD with --coplanar warn and leaves the decision to this check. Then three preview frames (the first, the middle and the last) are rendered at 8 samples (--previewspp) and compared with the web take by the colour check below; a failing preview stops the shot (stage preview-check). --nopreview skips the preview. The temporal and crown checks compare consecutive frames at the take's samples, so they run on the take only. --preps n sets the number of harvest and USD workers (one per GPU by default); writing a USD is CPU work, so with the harvests done a larger value writes several USDs at once.

The take of a shot fails when one of these checks fails:

Check	What it measures	Fails when
Colour against the web take (cyc_vs_web.py)	per 16 px cell, the colour and lightness difference from the web take of the same shot after matching exposure	off-colour cells cover more than 0.4 % of the frame, or off-lightness cells more than 2 %
Temporal scan (tools/ad/temporal_scan.py --fine)	flicker, z-fighting and shimmer between neighbouring frames	6 or more 40 px cells change over 6 levels in 8 or more frames, among other tests
Coplanar audit (bx_fix.json)	surface pairs in one plane that remain in view	more than 100 pairs
Crown check (bx_leafcheck.py)	flicker in tree crowns, using the take's own depth	8 or more 32 px cells in 6 or more frames

The colour check needs a web take of the same shot in client/shots/ad/clips/<shot>/ (recorded with tools/ad/record.mjs); without one it is skipped. After each take, bx_temporal.py averages each frame with its neighbours by depth reprojection to remove residual noise and keeps the raw frames in _raw/; it is a filter, not a check.

Open the scene in Blender

With the full setup. Add --blend ~/bx/scene.blend to the single frame command above. The script saves the scene after its setup, with sky, lights, materials, trees, windows, pedestrians and the film look, then renders. Open it with "$BLENDER" ~/bx/scene.blend: the shot's camera is the scene camera, the frame range is the take's (0 to 107) and Cycles is set to the command's resolution; pick a frame and press F12 to render it. For this shot the file was 3.2 GB with 13,504 objects. Keep ~/bx/h and ~/bx/u in place: the scene refers to their files.

As a plain import. In Blender, choose File, Import, Universal Scene Description, and select ~/bx/u/t7ArchSoffit.usda with the default options. This imports the city, the materials and the animated camera, but not what the setup scripts add: there is no sky, the camera must be made the scene camera (Scene properties), the sun is weaker than in the render, and pedestrians, window rooms, leaf translucency, lamps and the film look are missing. The import is useful to inspect geometry and materials.

Settings and times

Setting	Value used for the published takes	Option
Resolution	2560 × 1440	--res
Samples	24 by day and at golden hour, 32 at dusk and night	--samples
Denoiser	OptiX on the GPU, OIDN on the CPU	--denoiser
Motion blur	half a frame, ending at the frame	--mblur, --mbpos
Output	JPEG quality 95, frame_%05d.jpg	--quality

Measured on RTX 6000 Ada GPUs (48 GB) with two Blender processes per GPU, over the 20 published takes: the setup took about 72 s, the first frame 23 to 51 s, and each further frame a median of 9.4 s at golden hour and 11.4 s at night or dusk, of which about 4.7 s is the scene update. A 108 frame take took 16 to 35 minutes. The harvest took 15 to 26 minutes per shot and the USD step 9 to 19 minutes. These takes used the first tree set and the web-matched light; with physical light and bxtrees2, a golden hour take of t7ArchTrack needed 91 s of setup (31 s for the USD import) and about 8.5 s a frame.

Common problems

Problem	Fix
CUDA out of memory or OptiX errors	Render on an idle GPU (nvidia-smi), one Blender process per GPU, or lower --res.
One render uses every GPU	Set CUDA_VISIBLE_DEVICES (and CUDA_DEVICE_ORDER=PCI_BUS_ID).
No NVIDIA GPU	Add --cpu (and --threads N); expect minutes per frame.
The writer stops with COPLANAR FAIL and exit code 4	Run it with --coplanar warn; the pairs are listed in bx_fix.json. Do not use --coplanar off, which brings back flickering paint and decals.
Facades or paving in wrong colours	The USD was written into a folder that holds textures of another harvest. Write each USD into a new folder.
Trees look like the web version	BXTREES_ASSETS was not set when the USD was written.
Tree crowns render black or fail in the log	BXTREES2_TEX does not point to Blender/bxtrees2/tex (BXTREES_TEX and Blender/bxtrees/tex for the first set).
Facades show plain glass instead of rooms	--winrooms does not point to rooms_atlas.png.
Night frames are nearly dark	The lights step found no harvest: pass --harvest with the harvest folder.
A setup step fails	Each step reports hook <name> ... failed in the log and the render goes on without it. Search the log for hook; --nopeds leaves pedestrians out.
Black fans on the road or dark triangles at junctions	Coincident surfaces: keep the default --ground drop and the coplanar pass.
The harvest stops after 45 minutes	Its time limit: raise it with HARNESS_MAX_MIN=90.
